Solenoid, Open Frame, Pull Type
item #: SOOCL02104406P
Made in USA
Availability: in stock - available for immediate shipment
Unit Price:
1-4 pieces:
$35.92
5-9 pieces:
$31.52
10-24 pieces:
$28.08
25-49 pieces:
$25.07
50-99 pieces:
$21.67
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:
Special Comments
Quantity adjustment on next page

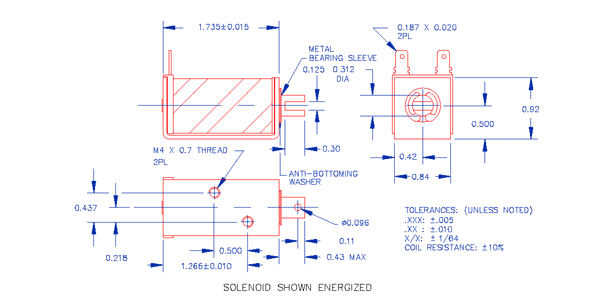

Open (Box C) Frame Solenoid, Pull type, 6.0 VDC Pulse (10%) Duty, 0.84"(21 mm)W X 0.92"(23 mm)H X 1.75" (44 mm)L.
Mounting: Two tapped holes 8-32 (or M4 X 0.7) on the body.
Internal Resistance = 1.1 Ohms
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate
Force at 0.10" (2.5 mm) stroke: 60.0 Oz (1701 gr)
Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr)
Force at 1.00" (25.4 mm) stroke: 6.5 Oz (184 gr)
